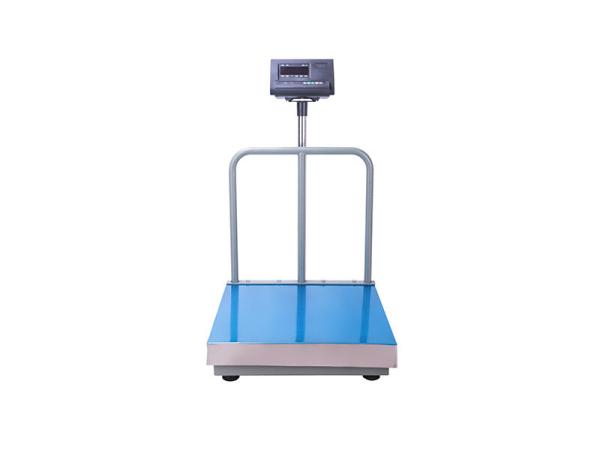

Stainless Steel Carbon Steel Bench Weighing Scale With Guardrail 500KG
Feature:
1. High-strength powder-coated carbon steel frame with 201 stainless steel plate (optional 430/304 plate
2. Standard high-precision foot-standing weighing sensor (optional Zhonghang, Keli...)
3. Removable stainless steel plate for easy cleaning
4. A variety of meters can be selected (eg: Yaohua, Caixin, Dinacho...)
5. Four adjustable non-slip and wear-resistant rubber feet
6. 304 stainless steel rod with indicator clamp
7. Heavy-duty design, real material, sturdy and durable
8. Strong and beautiful welding
9. Customizable products (scale size, color, structure, capacity...)
10. High-strength screws (12.9 grade screws)
Specification:
| Rated Load | 60/100/200/350/500kg |
| Rated Output | 2.0 mV/V±5% |
| Zero Balance | ±0.0200 mV/V |
| Non-linearity | 0.02%R.O. |
| Hysteresis | 0.02%R.O. |
| Repeatability | 0.02%R.O. |
| Creep (30 minutes) | 0.02%R.O. |
| Return to Zero (30 minutes) | 0.02%R.O. |
| Safe Overload Rate | 150%R.O. |
| Ultimate Overload Rate | 200%R.O. |
| Output Temperature Effect | 0.002%R.O./°C |
| Zero Temperature Effect | 0.003%R.O./°C |
| Input Impedance | 410±15Ω:390±15Ω |
| Output Impedance | 350±5Ω |
| Insulation Resistance | ≥5000 M2/(50VDC) |
| Recommended Operating Voltage | 5-12 VDC |
| Maximum Operating Voltage | 15VDC |
| Operating Temperature Range | -20~60C |
| Material | Carbon steel, stainless steel |
| Protection Level | IP66/IP67 |
| Cable Length | Φ 5x1.5m |
| Recommended Table Size | 35X45cm;40X50cm |
| Wiring Method | Red: Power +, Black: Power - |
| Green: Signal +, White: Signal - |
Application:
Laboratories: For weighing chemicals and samples in a controlled environment.
Manufacturing: To weigh parts and components during production processes.
Healthcare: In pharmacies or clinics for weighing medications or medical supplies.
Food Industry: For portion control and ingredient weighing in kitchens and food processing plants.
Shipping and Logistics: To ensure packages meet weight requirements before shipping.
FAQ:
Q1: Are you a factory or trading company?
A: We are a factory.
Q2: MOQ?
A: We don't have MOQ limit, you can order any quantity you want.
If you need scales with your specification, logo, packing, etc, please negotiate with us.
Q3: Can I have a sample for testing?
A: Actually we think samples are not very important.You can buy from anywhere. But we think our cargos will better then any others.
Q4: Can I add my logo on the machine?
A:Yes,OEM is available for us.
But you should send us the Trademark authorization letter.
Q5: How can i get the after-service?
A:We will send you the spare parts by free if the problems caused by us.
If it is the men-made problems,we also send the spare parts,but you should pay.
Q6: Do you have inspection procedures for these machine?
A:100% self-inspection before packing
Q7: Delivery date?
A: within 2 weeks.
Q8: Payment Method?
A: L/C at sight, T/T, Western Union and Paypal are all available.
30% deposit T/T in advance, rest against the Shipping Doc.
100% T/T in advance for sample order.
Q9: Shipping?
A: a. International Experess: DHL/TNT/FEDEX/UPS (For sample)
b. By air (For sample orders.)
c. By sea (15-45days), port of loading: Shanghai
d. By domestic logistics to your forwarder. (2-3days)
Q10: Can I have a visit to your factory before the order?
A: Sure,welcome to visit our factory.
We can pick you up in the airport or train station. Hotel booking service is available
